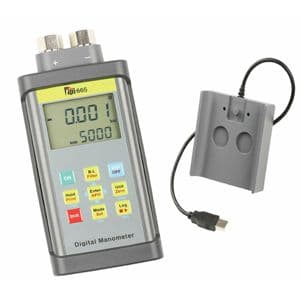

TPI 665 Manometer, Docking Station & PC Software


Our Price: £189.95

Description

Specifications

  • Differential input with +/-100psi range.
  • Seven units of measure (bar, kPa, PSI, mmHg, inHg, mmH2O, inH2O).
  • Data Logging - Record test data with time stamp and display with optional
  • software.
  • PC Communication: IR to USB Interface and PC Application software
  • (optional p/n A665)
  • Printing - Print test results directly to the optional A740 IR printer
  • Display - 5 digit dual line with backlight
  • Data Storage - Save up to 16 readings.
  • Min / Max - Records Min/Max readings
  • Auto Off - Conserve batteries.
  • Measurement Range: ±101.5 psi (±7bar)
  • Display: 5 Digit Dual line LCD with backlight
  • Input Type: Differential (1/4” NPT)
  • Resolution (max): 0.01 psi (0.001 bar) (0.1 inH2O)
  • Accuracy: 0.2% Full scale
  • Repeatability: 0.1% Full scale
  • Mean Temperature Coefficient: 0.1% of reading per ºC
  • Functions: One Touch Zero, Data Hold, Back-light, Unit Selection, Data
  • Logging, Auto power Off, Min / Max Record,
  • Resolution Selection
  • Units of Measure: 7Units (bar, kPa, PSI, mmHg, inHg, mmH2O, inH2O)
  • Data logging: 5000 Data, 1sec ~ 24 hour.
  • Data Storage: 16 data points
  • Communication: IR to USB Interface and PC Application software
  • (optional p/n A665)
  • Battery Type: AA(1.5V)*2 alkaline (MN1500, LR6)
  • Battery Life: 600hour (Typical)
  • Auto Power Off: 20 minutes (can be disabled)
